Swing Gates Vs Sliding Gates: Choosing The Right Option For Your Nottingham Property

Making The Right Electric Gate Choice For Your Property

Choosing between swing gates and sliding gates represents one of the most important decisions when installing electric gates in Nottingham. Both options offer distinct advantages, but your property's specific layout, space requirements and personal preferences will ultimately determine which solution works best for your needs.

Understanding the fundamental differences between these gate types helps you make an informed decision that you'll be satisfied with for years to come. From space requirements and installation costs to security features and maintenance needs, each gate style brings unique characteristics that suit different situations. This
guide examines both options to help you select the perfect electric gate for your property.

Understanding Swing Gate Systems & Their Benefits

How Swing Gates Operate

Swing gates function exactly like traditional doors, pivoting on hinges attached to sturdy posts or pillars. They can open either inward toward your property or outward toward the street, though inward opening is generally recommended for safety and legal compliance. The gate panels swing in an arc motion, requiring adequate clearance space throughout their full range of movement.

Modern swing gate systems use powerful motors mounted to the gate posts, providing smooth automated operation via remote controls, keypads or smartphone apps. Single swing gates feature one large panel spanning the entire entrance width, whilst double swing gates use two smaller panels that meet in the centre when closed. The choice between single and double configurations depends largely on your entrance width and available clearance space.

Installation involves setting robust posts capable of supporting the gate's weight and the repeated forces of opening and closing cycles. These foundations typically require concrete footings extending below the frost line, usually 2-3 feet deep depending on your soil conditions and gate size.

Space Requirements For Swing Gates

Swing gates demand significant clearance space to operate properly, making them unsuitable for properties with limited driveway depth. A standard 12-foot single swing gate requires approximately 14-16 feet of clear space to accommodate its full swing arc, including a safety margin for proper operation.

Double swing gates reduce the clearance requirements considerably, with each 6-foot panel requiring only 6-8 feet of swing space. This configuration works better for properties with moderate space constraints whilst still providing wide vehicle access. However, you must consider not just the gate's swing path, but also room for vehicles to wait safely during the opening cycle.

Upward or downward sloping driveways create additional challenges for swing gates. Steep inclines may prevent proper ground clearance, causing the gate to scrape or bind during operation. Special rising hinges can accommodate moderate slopes, but significant inclines often make swing gates impractical.

Advantages Of Swing Gate Systems

Swing gates typically cost less than sliding systems due to their simpler mechanical design and installation requirements. The basic components include hinges, posts and automation equipment, without the need for tracks, rollers, or complex guide systems. This simplicity translates to lower initial costs and reduced long-term maintenance expenses.

The classic appearance of swing gates complements traditional architecture beautifully, offering timeless elegance that improves property curb appeal. Double swing gates create particularly impressive entrances, with the dramatic effect of panels parting from the centre to reveal your property beyond.

Maintenance requirements are generally minimal, with occasional lubrication of hinges and regular inspection of automation components being the primary needs. The absence of ground-level tracks eliminates concerns about debris accumulation, ice formation or drainage issues that can affect sliding systems.

Sliding Gate Systems & Their Applications

How Sliding Gates Function

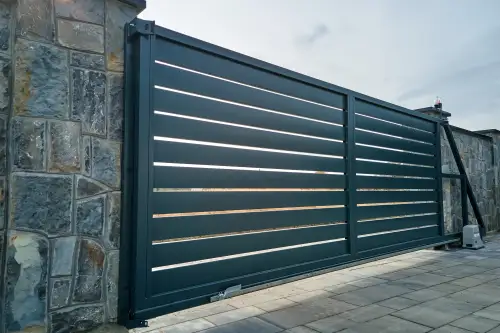

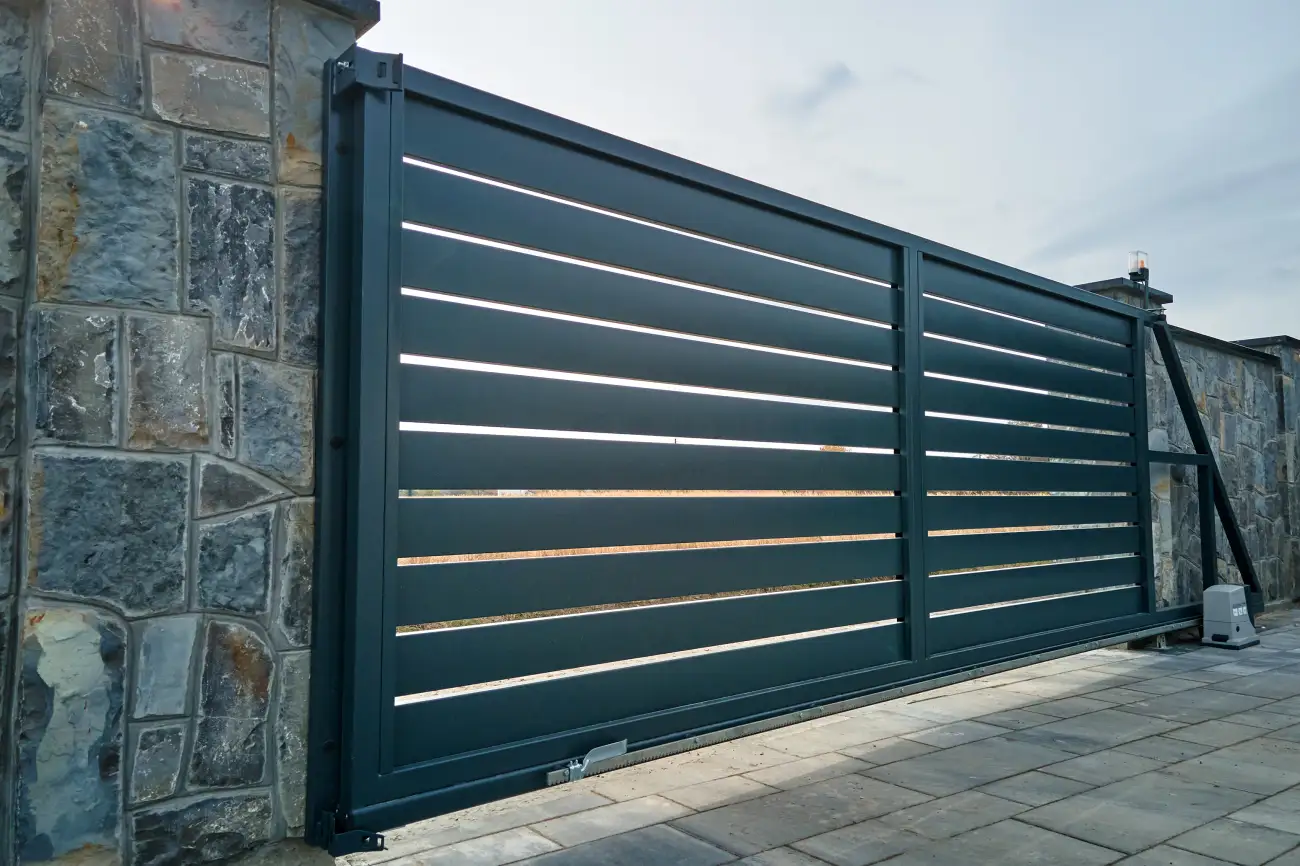

Sliding gates operate along a horizontal track system, moving parallel to your fence line rather than swinging in an arc. The gate panel slides completely to one side when opening, typically supported by rollers or bearing systems that run along a ground-mounted track. This lateral movement requires space along your fence line equal to the gate's width plus additional clearance.

Modern sliding gate systems use rack-and-pinion drive mechanisms or chain-driven motors to provide smooth, reliable operation. The motor unit typically mounts near the gate opening, connected to the gate panel through a drive system that moves the gate along its track. Safety features include obstacle detection, emergency stop functions and backup power options.

Cantilever sliding gates represent an advanced variation that eliminates the need for ground tracks by supporting the gate from above using a balanced cantilever system. This design works particularly well for areas prone to flooding, ice or heavy debris accumulation that might interfere with traditional track systems.

Space & Installation Considerations

Sliding gates require lateral space along your fence line rather than front-to-back clearance, making them ideal for properties with limited driveway depth but adequate side space. The gate needs room to slide completely open, typically requiring space equal to the gate width plus 2-3 feet of additional clearance for proper operation.

Installation involves creating a level track foundation, which may require excavation and concrete work along the fence line. The track must remain level and properly aligned to prevent binding or premature wear of the gate mechanism. Drainage considerations are important to prevent water accumulation that could affect gate operation during freezing weather.

For properties lacking sufficient side space, bi-parting sliding gates offer an alternative solution. These systems use two panels that slide in opposite directions, each requiring only half the lateral space of a single sliding panel. However, this configuration increases complexity and costs compared to single-panel designs.

Benefits Of Sliding Gate Systems

Sliding gates excel in space-constrained environments where swing clearance is unavailable or impractical. They work particularly well on sloping driveways where swing gates would face ground clearance issues. The horizontal movement pattern allows reliable operation regardless of driveway grade, provided the track remains level.

Security advantages include resistance to forced entry attempts, as the track-mounted design makes it difficult to push or pull the gate open manually. Many sliding systems incorporate anti-lift mechanisms and distributed locking systems that provide superior security compared to swing gates. The substantial construction typical of sliding gates also acts as a strong visual deterrent.

Weather resistance is generally excellent, with sliding gates less affected by wind loading than swing gates. Strong winds that might damage swing gate hinges or strain automation systems have minimal impact on properly installed sliding gates. This durability makes them particularly suitable for exposed locations or areas with frequent severe weather.

Making Your Final Decision

Selecting between swing and sliding gates ultimately depends on your property's specific characteristics, your security requirements and personal preferences. Consider your available space carefully, as this often determines feasibility more than any other factor. Properties with limited driveway depth benefit from sliding gates, whilst those with ample clearance space can choose either option based on other criteria.

Budget considerations should include both initial costs and long-term maintenance expenses. Whilst swing gates typically cost less initially, factor in your willingness and ability to perform ongoing maintenance when making your decision. Professional installation and regular servicing guarantee optimal performance regardless of which system you choose.

For expert guidance on selecting and installing the perfect gate system for your Nottingham property, consult with experienced Gate Technicians today.
